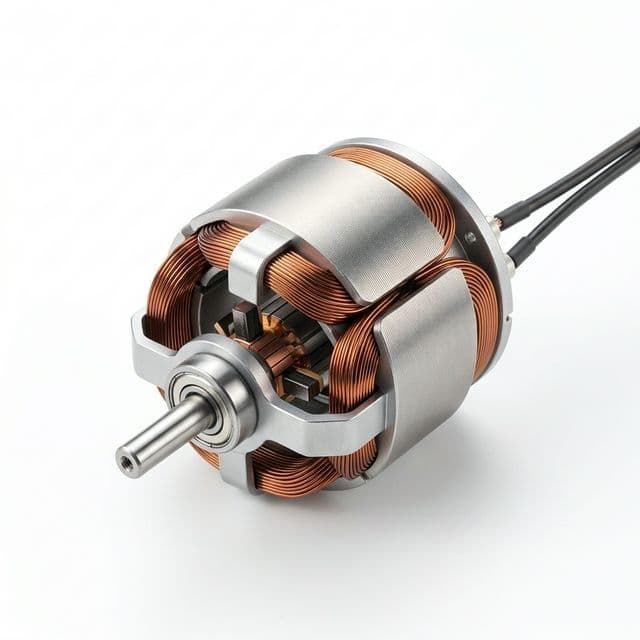

0717 Coreless DC Motor Selection Tool and Decision Report
Use one canonical URL to finish two tasks in sequence: get an immediate motor-fit estimate, then verify decision quality with evidence, boundaries, alternatives, and risk controls. Alias intent (`0717 dc coreless motor` and `717 coreless motor`) is consolidated on this page.
Published: 2026-04-08 | Last updated: 2026-04-08 | Review cadence: quarterly
Evidence sources:maxonTIPortescapECHAPHMSA
Tool layer: quick sizing input
Enter boundary-safe values first. Invalid input is blocked and recoverable.
Result layer: interpreted outputNo result yet
Result includes interpretation, uncertainty, and the next executable action.
Empty state
No calculation yet. Enter inputs and run the estimator to generate a fit decision.
Stage1c content-gap audit and closure status
This round focuses on evidence gaps, missing decision boundaries, and low-density sections that can mislead procurement choices.
Blocker
0
High
0
Medium
2
Low
0
Gap closure ledger
Blocker/high gaps are closed in-page; unresolved items remain explicitly marked for follow-up.
| Gap found | Decision impact | Action taken | Status |
|---|---|---|---|
| Current terms (no-load/rated/stall) were mentioned but not strictly defined for procurement review. | High risk of approving driver or battery choices from non-comparable catalog numbers. | Added a dedicated metric-definition table with source-backed term boundaries and explicit interpretation rules. | Closed in stage1b enhancement |
| Cross-vendor motor power labels were treated as directly comparable. | High risk of false equivalence because assigned watt labels use different vendor methods. | Added maxon evidence that assigned power has no universal standard and converted comparison logic to n-M-I evidence requests. | Closed in stage1b enhancement |
| Thermal boundary guidance was too generic and lacked a concrete continuous-operation decision threshold. | High risk of running near thermal runaway in high-duty scenarios despite passing initial electrical checks. | Added Portescap thermal boundary data and integrated <=80% max-continuous-torque rule into method and RFQ acceptance sections. | Closed in stage1b enhancement |
| Battery-droop formula coefficients were below the documented 100-220mOhm assumption range in the tool model. | High risk of understating startup droop and UVLO exposure in low-voltage startup checks. | Updated droop estimation coefficients to 0.10-0.22Ohm to match the documented model boundary and result messaging. | Closed in stage1c self-heal |
| 0717-specific public evidence remains heavily seller-page biased; unified manufacturer datasheet coverage is sparse. | Medium risk remains for PN-level design freeze decisions if teams over-trust marketplace claims. | Demoted seller pages to scoped evidence, added stronger manufacturer/official sources, and kept unresolved items in pending block. | Open (public data quality gap) |
| Battery ESR assumption in the quick tool lacks a stable public cross-vendor dataset for 1S micro packs. | Medium risk remains for low-voltage restart decisions until project-specific pack measurements are captured. | Kept droop model as explicit assumption and added mandatory waveform/pack-validation requirements in RFQ acceptance gates. | Open (evidence pending) |
Report summary: conclusions and key numbers
Core conclusions are paired with quantifiable context before deep-dive sections.
SERP intent sample
Top 6: commerce-heavy specs pages
Search samples for `0717 coreless dc motor` and `717 coreless motor` are dominated by product listings (accessed 2026-04-08), confirming mixed do+know intent.
0717 frame meaning
7mm diameter x 17mm body

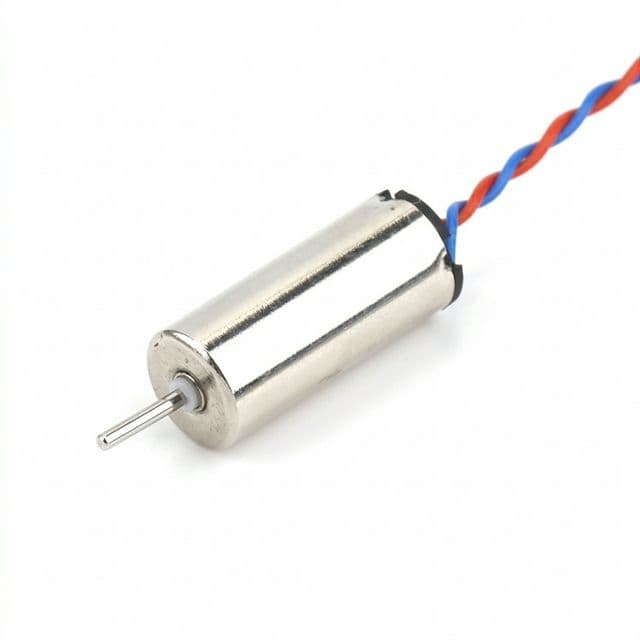

Multiple public listings label 717/0717 as a 7x17mm frame (accessed 2026-04-08).
Current label divergence
0.1A no-load vs 0.8A listing current
Public 7x17 listings show mismatched current labels, so current-definition checks are mandatory before RFQ.
Data tolerance boundary
Motor constants can shift by about 10%
maxon motor-data guidance highlights that catalog constants can vary by tolerance and temperature; single-point specs are not enough for design freeze.
Transient current reality
DRV8833 OCP 2.0A-3.3A, tDEG 4us
TI DRV8833 Rev. E electrical characteristics. Peak labels alone are not enough.
Thermal sizing rule
<=80% of max continuous torque
Portescap thermal guidance for continuous applications; this is a boundary rule, not a lifetime guarantee.
SVHC update cadence
ECHA Candidate List: 253 entries
ECHA table/news checked 2026-04-08; latest inclusion date shown as 2026-02-04.
Who this is suitable for
- Need a fast pre-RFQ check for 0717/717 in 1S battery products.
- Need to decide between 0717 direct drive and 0720 or gear fallback without splitting keyword pages.
- Need startup-current envelope before locking driver and battery path.
- Need risk-aware recommendation with clear next action for sourcing.
Who this is not suitable for
- Safety-critical products requiring certified reliability qualification.
- Programs needing guaranteed multi-thousand-hour life without vendor bench data.
- Requests dominated by >1.2mNm continuous torque with high duty cycle.
- Mass-production release without waveform, thermal, and endurance validation.
Need a deeper decision review?
Use this secondary handoff when quick sizing is still conditional or when compliance evidence is incomplete.
Related decision pages
Use these internal pages to continue sizing decisions that share voltage, startup-current, or alias-intent boundaries.
Adjacent pages for the same decision workflow
These links connect the 0717 page with nearby cluster content and canonical alias handling.
0716 hollow cup motor page
Use this when your project must compare 7x16 and 7x17 package boundaries on one procurement workflow.
1.5V micro motor sizing page
Use this when your rail is near 1.5V-3.7V and UVLO risk dominates selection.
6V DC motor sizing page
Use this when your project spans 1.5V-6V envelopes or needs higher-voltage boundary checks.
Methods and evidence
Transparent formulas, dated sources, and explicit known/unknown boundaries.
Method flow
Input to estimate to boundary check to action path.
| Method block | Formula / rule | Decision value |
|---|---|---|
| Mechanical power estimate | P = 2 * pi * n / 60 * T | Converts speed and torque demand into shaft load. |
| Rated current estimate | I = P / (V * eta) + I_idle | Adds efficiency and idle overhead to avoid optimistic sizing. |
| Startup surge estimate | I_start ~= 3.0 * I_rated | Used as a pre-RFQ current budget check for tiny-driver and battery rails. |
| Speed-torque gradient cross-check | R_nM ~= n0 / MH | maxon guidance uses no-load speed and stall torque to derive a first-pass slope; use it to sanity-check vendor curves before RFQ lock. |
| Driver headroom check | I_start <= I_OCP_min_margin and I_rated <= I_cont_driver_thermal | Separates transient cutoff and thermal steady-state checks; if either rating is ambiguous, keep output conditional. |
| Driver retry-risk check | t_overcurrent > t_DEG => OCP retry behavior expected | Uses datasheet deglitch and retry timing as an explicit decision boundary for startup/stall events. |
| Battery droop screening | V_drop ~= I_start * R_internal | This page uses 100-220mOhm as a conservative placeholder for 1S micro-pack screening; verify on your own pack at temperature. |
| Catalog tolerance and temperature drift guardrail | Key constants shift with tolerance and temperature (about 10% class warning) | Per maxon motor-data guidance, avoid single-point design lock; request tolerance bands and hot-condition data. |
| Continuous thermal margin rule | For continuous duty, target load <= 0.8 * M_cont_max | Portescap thermal whitepaper suggests keeping continuous torque under 80% of max continuous torque to preserve reliability margin. |
| Brush life boundary (class-level) | Life decreases as speed/load/temperature rise; keep PWM >= 20kHz | FAULHABER class guidance is used for boundary messaging, not a PN-level lifetime guarantee. |
| Confidence score | Base 90 - condition penalties | Penalizes low-voltage, high-speed, high-torque, high-duty, and harsh-environment requests. |
Source ledger
Time markers and certainty labels are mandatory for trust. Last refreshed: 2026-04-08.
| Source | Date | Coverage | Known / Unknown |
|---|---|---|---|
| OpenSpec change: add-kw-0717-coreless-dc-motor-page | 2026-04-06 | Keyword snapshot (volume and CPC) + canonical decision to serve 0717 intent on /learn/0717-coreless-dc-motor. | Known |
| maxon Support: Motor data and simulation | Updated 2024-08-29 (accessed 2026-04-08) | Defines no-load, nominal, and stall data points and warns that motor constants vary by tolerance and temperature. | Known (manufacturer technical support) |
| maxon Support: Assigned power rating of DC and EC motors | Updated 2024-08-29 (accessed 2026-04-08) | States there is no universal standard for assigned power labels across manufacturers. | Known (manufacturer technical support) |
| maxon DC motor guide (Short and to the point) | 2023 edition (accessed 2026-04-08) | Explains winding tradeoffs (low resistance => higher starting current; high resistance => lower startup current) and speed/lifetime implications. | Known (manufacturer technical guide) |
| Portescap whitepaper: thermal parameters of coreless DC motors | 2023-07 (accessed 2026-04-08) | Thermal-limit framing for continuous-duty design, including recommendation to keep continuous torque below max-continuous threshold margin. | Known (manufacturer engineering whitepaper) |
| TI DRV8833 datasheet (Rev. E) | Accessed 2026-04-08 | VM 2.7V-10.8V, 1.5A RMS/2A peak per H-bridge, OCP 2.0A-3.3A, deglitch and retry timing. | Known |
| TI DRV8212 datasheet (Rev. B) | Accessed 2026-04-08 | Low-voltage path (VM down to 1.65V on DRL package), OCP class, and UVLO/OCP timing details for transient checks. | Known |
| TI application report: Understanding Motor Driver Current Ratings (Rev. A) | 2024-07-05 (accessed 2026-04-08) | Explains no industry-standard current-rating naming; RMS/average/peak must be interpreted with thermal context. | Known |
| FAULHABER DC motor technical guide and motor-calculation whitepaper | Accessed 2026-04-08 | Coreless brushed class boundaries: linear n-M / I-M relations, first-pass boundary (n >= no/2, M <= MH/2), and class-level life/PWM recommendations. | Known |
| Web SERP sample for `0717 coreless dc motor` and `717 coreless motor` | Accessed 2026-04-08 | Top results are mostly commerce pages with quick specs, indicating mixed do+know intent and weak standardization in public naming. | Known (dated sample, discovery only) |
| DuinoLK 717 listing (7x17mm) | Accessed 2026-04-08 | Lists 3.4-3.7V range, ~55000rpm, 0.1A no-load current, and 1.5g.cm torque (seller scope). | Known with seller scope (low confidence for cross-vendor comparison) |
| Invento 717 listing (7x17mm) | Accessed 2026-04-08 | Lists 3.7V, 55000rpm, 0.8A and 7x17mm size for 717 products (seller scope). | Known with seller scope (low confidence for cross-vendor comparison) |
| NFP D0716 product page (nfpmotor.com) | Accessed 2026-04-08 | 7x16 reference frame with listed 3V-3.7V and high stall-current points (vendor scope only). | Known with vendor scope (directional only) |
| NFP D0720 product page (nfpmotor.com) | Accessed 2026-04-08 | 7x20 reference frame with listed higher stall-current points (vendor scope only). | Known with vendor scope (directional only) |
| ECHA Candidate List table | Accessed 2026-04-08 | Candidate List page shows 253 entries and latest listed additions dated 2026-02-04, with immediate legal-obligation notice. | Known |
| ECHA news: two substances added to Candidate List | Published 2026-02-04 (accessed 2026-04-08) | Change event confirming latest inclusion date and entry-count increase used for compliance refresh timing. | Known |
| ECHA REACH Article 33 page: communication in the supply chain | Accessed 2026-04-08 | For >0.1% w/w SVHC in articles, suppliers must communicate safe-use info immediately; consumer requests must be answered within 45 days. | Known |
| ECHA REACH Article 7(2) page: notification of substances in articles | Accessed 2026-04-08 | Notification is required when SVHC >0.1% w/w and total quantity exceeds one tonne/year; deadline is within six months after inclusion. | Known |
| ECHA SCIP overview | Accessed 2026-04-08 | SCIP submission requirement applies from 2021-01-05 for articles on the EU market containing Candidate List SVHC above 0.1% w/w. | Known |
| EUR-Lex Directive 2011/65/EU (RoHS) | Accessed 2026-04-08 | Current consolidated version marker (01/01/2025) and Annex II concentration limits for restricted substances in homogeneous materials. | Known |
| PHMSA lithium battery test summary notice (DOT) | Updated 2024-07 (accessed 2026-04-08) | States UN 38.3 test-summary requirement effective 2022-01-01 and revised effective 2024-05-10. | Known |
| On-page sizing model (this tool) | 2026-04-08 | Pre-RFQ screening for fit/current/boundary output; not a substitute for supplier qualification reports. | Known |
| 0717 PN-level standardized datasheet repository | Pending | No stable public dataset with harmonized 0717 no-load/rated/stall definitions across suppliers was found in this research round. | Pending confirmation / no reliable public dataset |
| PN-level life and brush-wear reports by supplier/winding | Pending | Cross-vendor endurance curves under matched load profiles are not publicly complete. | Pending confirmation / no reliable public dataset |
Concept boundaries and RFQ acceptance gates
This block converts source findings into executable decision rules so teams can avoid ambiguous catalog interpretations.
Metric definition boundary table
Scope update: 2026-04-08. Definitions come from manufacturer technical guidance, then mapped to RFQ actions.
| Metric / label | Definition boundary | Decision rule |
|---|---|---|
| No-load speed (n0) | Speed at rated voltage with no external load. It is a reference point, not application output speed. | If a vendor only provides n0, require at least one loaded speed-current point before selecting driver and prop/load. |
| Nominal operating point (nN, IN, MN) | Catalog point where speed/current/torque are declared as nominal under defined conditions. | Treat nominal data as valid only when voltage, ambient, and fixture match your test condition. |
| Stall current and stall torque (IA, MH) | Boundary values at zero speed (blocked rotor), useful for startup/transient envelope checks. | Use stall values for transient budgeting and protection design, not as continuous-operation targets. |
| Speed-torque gradient (R_nM) | First-pass slope approximation from maxon: no-load speed divided by stall torque. | Use R_nM to detect inconsistent vendor data before committing sample and test budget. |
| Assigned power rating (W) | maxon states there is no global standard for assigned motor-power labels across manufacturers. | Do not compare options by watt labels alone; compare measured n-M-I points at shared test conditions. |
| Tolerance and temperature effects | maxon motor-data guidance notes key parameters can vary with tolerance and temperature (about 10% class warning). | Keep selection conditional until hot-condition waveform and tolerance-window data are confirmed. |
RFQ acceptance gate table
If evidence is missing, the default action is to keep output conditional or block release.
| Gate check | Required evidence | If missing |
|---|---|---|
| Current-definition package | No-load, nominal, and stall current values each with voltage, ambient, and fixture definitions. | Keep output conditional and block driver freeze. |
| n-M-I curve points | At least three load points (speed, torque, current) from the same winding and test setup. | Do not compare suppliers by headline rpm or watt text. |
| Winding electrical spread | Lot-level resistance and inductance tolerance window plus measurement temperature. | Treat startup-current and thermal projections as preliminary only. |
| Thermal continuous-duty proof | Temperature-rise evidence at target duty, with continuous-torque margin (<=80% rule for continuous operation). | No production commitment for high-duty scenarios. |
| Low-voltage restart waveform | Cold/worst-case battery waveform showing startup current, rail droop, UVLO behavior, and retry outcome. | Keep low-voltage path in boundary-review state. |
| Compliance refresh pack | Date-stamped RoHS, REACH Article 33/7(2), SCIP, and (if battery-included) UN38.3 test-summary documents. | Block EU release or battery-included sample logistics. |
Stage1b evidence delta
Only net-new, source-verifiable information is included here. Each row states scope and decision consequence.
New evidence-backed decision facts
Update date: 2026-04-08. Facts without stable public evidence stay in the pending block.
| Topic | New fact | Applicable condition | Decision effect | Certainty |
|---|---|---|---|---|
| 0717 frame interpretation | Public 717/0717 listings consistently describe a 7mm diameter and 17mm body length format. | This is a naming convention on commerce pages and still needs drawing-level confirmation per supplier PN. | Use 0717 as a mechanical-envelope starting point, then confirm drawing tolerances per PN. | Known with boundary |
| Current-label divergence in public 0717 listings | One listing shows 0.8A current at 3.7V while another lists 0.1A no-load current for similar 7x17, 55000rpm claims. | Most pages do not state whether current is no-load, rated, or stall, so cross-page values are not directly comparable. | Treat current figures as preliminary; require explicit current-definition and test condition before driver sign-off. | Known with boundary |
| Motor data definition boundary | maxon motor-data guidance explicitly separates no-load, nominal, and stall points and ties each to specific test conditions. | Catalog values are comparable only when voltage, ambient, and fixture definitions are the same. | RFQ packets now require definition-labeled n-M-I points; unlabeled values keep decisions conditional. | Known with boundary |
| Cross-vendor power-label comparability | maxon support notes there is no industry-wide standard for assigned motor power rating labels. | Vendor “W” labels can be calculated under different duty assumptions and therefore cannot be compared one-to-one. | The comparison section now prioritizes n-M-I and test-condition evidence over watt labels. | Known |
| Winding-resistance tradeoff | maxon DC motor guide states low-resistance windings tend toward higher startup current and higher specific speed, while high-resistance windings reduce startup current and speed. | This is class-level guidance and must still be verified on the exact 0717 winding from the supplier. | Added winding-tradeoff rows in comparison so users can choose current margin vs speed response intentionally. | Known with boundary |
| Catalog tolerance and thermal drift | maxon motor-data guidance warns that key motor constants can vary with tolerance and temperature (about 10% class warning). | Single-point room-temperature catalog values can understate startup and thermal risk. | Tool output remains pre-RFQ only; RFQ acceptance now requires tolerance-window and hot-condition evidence. | Known |
| Continuous thermal boundary | Portescap thermal guidance recommends continuous applications run below the maximum continuous torque and cites 80% as practical margin guidance. | This is an engineering rule-of-thumb and does not replace PN-level qualification testing. | Added explicit <=80% continuous-torque rule in method and RFQ gate tables for high-duty decisions. | Known with boundary |
| DRV8833 transient boundary (Rev. E) | DRV8833 lists OCP trip 2.0A-3.3A with 4us deglitch and 1.35ms OCP period, plus UVLO around 2.5V falling / 2.7V recovery. | Actual behavior depends on board thermals and transient duration; peak-current labels are not stand-alone acceptance criteria. | Treat repeated startup/stall events as boundary-state unless waveform and thermal validation confirms margin. | Known with boundary |
| DRV8212 low-voltage and OCP boundary (Rev. B) | DRV8212 (DRL) supports VM down to 1.65V and specifies OCP class and retry/deglitch timing for transient checks. | Low-voltage compatibility does not remove thermal and transient validation requirements on target PCB. | Use DRV8212-class options only when low-voltage startup is essential and current-path tests are planned. | Known with boundary |
| Driver current-rating semantics | TI Rev. A (2024) current-rating note states there is no industry-standard naming for motor-driver current ratings. | Peak, RMS, and average ratings are not interchangeable and depend on thermal conditions. | Treat unlabeled current claims as incomplete and require thermal-context checks before approval. | Known with boundary |
| Selection boundary heuristic | FAULHABER first-pass boundary uses n >= no/2 and M <= MH/2. | This is a screening heuristic and not a final life/reliability guarantee. | Requests outside this region should trigger architecture review or frame upgrade. | Known with boundary |
| Brushed lifetime range and PWM floor (class-level) | FAULHABER technical guide states typical brushed-coreless lifetime is 1,000-5,000 hours, with extremes from hundreds to over 25,000 hours; minimum 20kHz PWM is recommended. | This is class-level guidance and cannot replace PN-level endurance reports for a specific 0717 winding. | Keep life claims conditional; require duty-specific bench data before promising production lifetime. | Known with boundary |
| SVHC list update pressure | ECHA Candidate List table shows 253 entries and ECHA news marks 2026-02-04 as the latest addition event in this cycle. | List updates can create immediate legal obligations for articles containing newly listed SVHC. | Do not accept stale declarations; refresh supplier SVHC confirmation before EU release milestones. | Known |
| REACH Article 33 communication duty | For articles containing Candidate List SVHC above 0.1% w/w, suppliers must communicate safe-use information immediately and answer consumer requests within 45 days. | Obligation applies at article level and requires an operational response workflow, not only a static declaration file. | Build Article 33 response ownership into RFQ and after-sales processes before EU launch. | Known with boundary |
| REACH Article 7(2) notification gate | ECHA states Article 7(2) notification applies when Candidate List SVHC exceeds 0.1% w/w and total quantity exceeds one tonne/year, with a six-month deadline after inclusion. | Exemptions may apply only under specific exposure-control or prior-registration cases. | For scale-up programs, add tonnage and inclusion-date tracking to prevent late notification risk. | Known with boundary |
| SCIP obligation baseline | ECHA SCIP page states suppliers on the EU market must submit information for articles containing Candidate List SVHC above 0.1% w/w from 2021-01-05. | Notification applies to in-scope article supply chains and should be validated per product configuration. | Treat SCIP as a pre-shipment gate for EU article supply, not an afterthought. | Known |
| RoHS legal text freshness | EUR-Lex page marks Directive 2011/65/EU current consolidated version as 2025-01-01 and Annex II limits remain decision-critical for homogeneous materials. | Exemptions and category scope still require product-specific legal interpretation. | Use Annex II threshold checks as minimum gate and request exemption mapping when supplier claims rely on derogations. | Known with boundary |
| Battery logistics gate | PHMSA states UN38.3 test-summary requirement became effective 2022-01-01 and was revised effective 2024-05-10. | Requirement applies to lithium battery shipments in scope; motor-only shipments are outside this specific gate. | For battery-included samples, collect UN38.3 test summary before outbound logistics booking. | Known |
Pending confirmation / no reliable public data
Evidence is insufficient for strong conclusions in these areas.
| Open question | Why evidence is insufficient | Decision impact |
|---|---|---|
| Cross-vendor 0717 datasheet set with harmonized no-load/nominal/stall definitions. | Public 0717 data is mostly marketplace-level and lacks a shared test-condition schema. | Comparative selection remains conditional until each supplier provides definition-aligned n-M-I datasets. |
| High-duty life curves for 0717 at 3.7V with matched load profiles. | Public vendor data is fragmented by winding and does not use a unified test method. | Lifetime recommendations remain conditional until supplier test packages are reviewed. |
| Lot-level winding R/L spread and startup pulse durability for 0717 across suppliers. | Most public listings provide headline speed/current only, without electrical tolerance bands. | Driver sizing and thermal headroom remain conditional until supplier lot data is reviewed. |
| 1S micro-pack ESR distribution for cold-start conditions in target chemistry and form factor. | No reliable public cross-vendor dataset was found for the exact battery class used with 0717 modules. | Brownout and retry-risk conclusions remain model-based until project-specific pack measurements are recorded. |
| Cross-vendor acoustic map under propeller-coupled loads. | Noise data is usually measured on non-comparable fixtures and duty patterns. | Noise tradeoff is directional only in early selection. |
| Supplier-level SVHC declarations synced to latest Candidate List additions (for example 2026-02-04 entries). | Public pages show list updates but do not expose each supplier BOM declaration recency. | EU compliance confidence remains conditional until supplier declarations are refreshed and archived. |
| Project-specific UN38.3 summaries for battery-included sample kits. | Public regulatory notices define the requirement but do not provide your selected battery SKU evidence. | Battery-included logistics remains conditional until each shipment configuration has valid test-summary records. |
Alternative comparison
Use reproducible dimensions (voltage, torque, response, cost, fit) instead of generic claims.
Option comparison table
If a value is unavailable in your project context, keep it as N/A and request supplier evidence.
| Option | Voltage band | Torque band | Dynamic response | Cost class | Best-fit scenario | Boundary / counterexample |
|---|---|---|---|---|---|---|
| 0717 low-resistance winding | 1S class (project-specific) | Higher startup current tendency | Faster acceleration / higher speed tendency | Low to medium | Use when fast response is required and current path is validated. | As maxon winding tradeoff shows, low resistance raises startup-current stress and can compress driver margin. |
| 0717 high-resistance winding | 1S class (project-specific) | Lower startup current tendency | Lower speed tendency | Low to medium | Use when battery droop and thermal headroom are tighter constraints than peak speed. | Speed headroom can become insufficient for high-rpm applications unless gear/prop/load is re-optimized. |
| 0717 coreless brushed (marketplace reference) | 3.4V-3.7V listing class | 1.5g.cm listed on one seller (~0.147mNm) | Very fast | Low to medium | Quick discovery reference for lightweight drones, mini pumps, and compact actuation | Current labels vary (0.1A no-load vs 0.8A listing current), so direct driver sizing from catalog text is risky. |
| 0720 coreless brushed (reference) | 3.0V class (vendor listing) | Higher-load envelope than 0717 | Fast | Medium | Higher torque envelope when 0717 is repeatedly boundary-state | Higher startup current and mass can impact battery life and integration. |
| 0717 + reduction stage | 3.0V-4.2V | Application dependent | Medium | Medium to high | When output torque must rise but package diameter cannot grow | Gear wear/backlash risk increases with shock loads and frequent reversals. |
Driver matching and counterexamples
Driver choice is not only about VM floor. Current-rating definitions and thermal context must be verified before release.
Driver headroom table (updated 2026-04-08)
Uses official TI datasheets and current-rating guidance. If a rating name is ambiguous, keep status as conditional.
| Driver option | Official limit snapshot | What it means for 0717 | Minimum action |
|---|---|---|---|
| TI DRV8833 (Rev. E) | VM 2.7V-10.8V, 1.5A RMS / 2A peak, OCP 2.0A-3.3A, tDEG 4us, tOCP 1.35ms, UVLO ~2.5V falling / 2.7V rising | If a 0717 request is sized from ambiguous catalog current values, startup pulses can still hit OCP/thermal retries on compact boards. | Validate startup pulse width versus OCP timing and board temperature, then confirm if DRV8833-class headroom is enough. |
| TI DRV8212 (Rev. B) | VM down to 1.65V on DRL (up to 11V), OCP ~4A, tOCP ~4.2us, retry ~1.7ms, UVLO ~1.30V falling / 1.65V rising | Improves low-voltage startup margin, but transient and board-thermal checks remain mandatory for repeated high-current events. | Use as low-voltage fallback only with measured waveform, retry behavior, and thermal pass criteria. |
| Generic "2A motor driver" listing | Often unspecified whether value is peak, RMS, or average | Counterexample: nameplate current can look safe while thermal shutdown appears under repetitive startup. | Reject ambiguous current labels and request explicit rating definitions before design freeze. |
Compliance and logistics gates
Selection is incomplete if compliance and shipment evidence is missing. This block captures release-critical gates.
Release gate checklist
Facts are source-backed; unknowns stay marked as pending and are not converted into strong conclusions.
| Gate | Trigger condition | Required evidence | If missing |
|---|---|---|---|
| RoHS 2011/65/EU Annex II | Restricted substances exceed homogeneous-material thresholds (for example Pb/Hg/Cr6+/PBB/PBDE 0.1%, Cd 0.01%). | Latest declaration, exemption mapping, and material traceability aligned with current consolidated legal text (EUR-Lex marker: 2025-01-01). | Without documentation, EU market release risk remains high even if performance tests pass. |
| REACH Article 33 communication | Article contains Candidate List SVHC above 0.1% w/w. | Immediate B2B communication workflow and consumer-response mechanism (max 45 days) with traceable records. | Missing workflow creates direct compliance and customer-trust risk after product launch. |
| REACH Article 7(2) notification | SVHC >0.1% w/w and total quantity in relevant articles exceeds one tonne/year. | Tonnage tracking, applicability assessment, and notification evidence submitted within six months after inclusion. | Late or missing notification can block EU onboarding and trigger remediation cycles. |
| SCIP database submission | Articles supplied to the EU market contain Candidate List SVHC above 0.1% w/w (requirement baseline from 2021-01-05). | SCIP notification number and article mapping linked to supplied SKU configuration. | Without SCIP traceability, EU article supply readiness remains incomplete. |
| UN38.3 Test Summary (battery-included shipments) | Lithium battery in shipment scope; test-summary requirement effective 2022-01-01 and revised 2024-05-10. | UN38.3 test summary available before logistics booking. | Missing summary can delay or reject battery-included sample shipments. |
Regulatory timeline and deadline map
Date-aware timeline to prevent missed compliance windows during RFQ, pilot, and outbound logistics.
| Gate | Date / effective condition | Minimum action |
|---|---|---|
| ECHA Candidate List update cadence | Latest inclusion shown: 2026-02-04 | Refresh supplier SVHC declarations immediately after each Candidate List update; stale files are not accepted. |
| REACH Article 33 | Immediate once SVHC >0.1% w/w threshold is met | Send safe-use information to professional recipients and answer consumer requests within 45 days. |
| REACH Article 7(2) | Within 6 months after Candidate List inclusion | If >0.1% w/w and >1 tonne/year conditions are met, submit notification and archive confirmation. |
| SCIP (Waste Framework Directive) | From 2021-01-05 | For EU market supply of relevant articles, submit SCIP notifications and map IDs to shipped SKUs. |
| UN38.3 test summary | From 2022-01-01, revised 2024-05-10 | Battery-included samples must carry valid test summary evidence before logistics booking. |
Risk and mitigation
Covers misuse risk, cost risk, and scenario mismatch risk with direct mitigation actions.
Risk matrix
| Risk | Impact | Probability | Mitigation path |
|---|---|---|---|
| Startup surge exceeds driver OCP/thermal envelope | High | Medium to high | Budget startup current with OCP and thermal margin, then validate with oscilloscope + thermal capture. |
| Driver rating interpreted from peak number only | High | High | Separate peak vs continuous ratings and require thermal-context evidence from datasheet/app note. |
| No-load / nominal / stall values mixed in one decision without condition labels | High | High | Require definition-tagged data rows in RFQ and reject unlabeled current-speed numbers. |
| Cross-vendor watt labels used as if they were standardized | High | Medium | Use n-M-I points under shared test conditions; treat assigned power as descriptive only. |
| 0717 selected for a 0720-class torque request | High | Medium | Use comparison table and boundary output to escalate frame size early. |
| Low-cell-voltage operation near driver UVLO | High | Medium | Verify voltage floor, droop, and restart behavior under worst-case battery state. |
| Brushed lifetime overpromised from generic claims | High | Medium | Use class-level life guidance only for boundary checks and require PN-level endurance data before commitment. |
| Continuous-duty thermal margin not enforced | High | Medium | Keep continuous torque below the recommended margin and require temperature-rise evidence before pilot build. |
| Vendor headline specs reused as universal truth | Medium | High | Mark vendor scope clearly and demand sample validation for the chosen winding. |
| Stale SVHC declarations after Candidate List updates | High | Medium | Refresh supplier SVHC declarations at each Candidate List update checkpoint and archive date-stamped evidence. |
| Article 33 communication process not operationalized | High | Medium | Assign owner and SLA for immediate B2B communication and 45-day consumer-response handling. |
| Article 7(2) tonnage trigger not tracked during scale-up | High | Medium | Track annual article tonnage and Candidate List inclusion date; file notification within six months when criteria are met. |
| SCIP notification missing for EU article supply | High | Medium | Treat SCIP submission as pre-shipment gate for articles containing SVHC >0.1% w/w. |
| UN38.3 test summary missing for battery-included samples | High | Medium | For battery-included kits, collect test summary evidence before transport booking to avoid hold/reject. |
| Alias query split into competing pages | Medium | Medium | Keep one canonical URL and answer alias intent with anchors + FAQ. |
Scenario examples
Each scenario includes assumptions, modeled output, and the minimum next action.
Scenario table
| Scenario | Assumption | Estimated result | Action |
|---|---|---|---|
| Micro-prop drive on 1S pack | 3.7V, 50k rpm target, 0.35mNm, 25% duty | Recommended (within typical 0717 envelope). | Proceed to sample shortlist and verify startup current with real prop inertia. |
| Wearable micro-pump stage | 3.4V, 26k rpm target, 0.9mNm, 55% duty | Conditional fit. | Validate thermal drift and consider 0720 fallback if boundary states repeat. |
| Jam-prone latch mechanism with compact frame limit | 3.2V, 18k rpm target, 1.8mNm, 70% duty | Not recommended as direct 0717 drive. | Move to larger frame or geared architecture before RFQ. |
| Cold battery startup | 2.8V rail and >1.2A transient startup draw | Conditional with high electrical risk. | Capture droop/UVLO waveform and validate restart margin before committing. |
| Compact haptic feedback module | 3.7V, 35k rpm target, 0.35mNm, 15% duty | Recommended with low thermal risk. | Use low-noise winding sample and run acoustic sanity check on final fixture. |
Alias coverage anchors
Internal anchors keep `0717 coreless dc motor`, `717 coreless motor`, and `7x17 coreless motor` intent on this canonical page without split routes.
Decision FAQ
Questions are grouped by intent, not glossary-only definitions.
B2B application fit, OEM options, and inquiry handoff
Move from estimator output to executable sourcing with factory customization scope and compliance-timeline gates.
Application fit
Projects that match this page's pre-RFQ scope.
- Programs evaluating 0717 frame fit in 1S battery products before supplier shortlist.
- Teams consolidating `0717 coreless dc motor`, `0717 dc coreless motor`, and `717 coreless motor` intent on one canonical route.
- Projects requiring explicit current-definition checks (no-load/rated/stall) before RFQ submission.
OEM options
Customization knobs available from factory-side engineering.
- Winding and commutation optimization for target speed/torque and startup-current profile.
- Shaft-end, lead-wire, connector, and mounting customization for your mechanical stack.
- Alternative 0720 or geared architecture proposal when 0717 envelope is overloaded.
Trust and compliance
Evidence gates required before production commitment.
- Treat Article 33/SCIP/UN38.3 files as RFQ-gate documents, not post-order paperwork.
- Confirm OCP/UVLO behavior and startup waveform on your exact battery + inertia path.
- Keep decisions conditional until PN-level endurance and thermal evidence is archived.
