6V DC Motor Sizing Tool and Decision Report (includes `1.5 6v dc motor` + `10w dc motor 6v` alias intent)
Use one canonical URL to finish two tasks in sequence: get an immediate motor-fit estimate, then verify decision quality with evidence, boundaries, alternatives, and risk controls.
Published: 2026-04-06 | Last updated: 2026-04-29 | Review cadence: quarterly
Tool layer: quick sizing input
Enter boundary-safe values first. Invalid input is blocked and recoverable.
Boundary: 1.5V to 6V.
Boundary: 500 to 20,000 rpm.
Boundary: 1 to 120 mNm.
Boundary: 5% to 100%.
If the result is inconclusive, use the design-review CTA instead of forcing a procurement choice.
Result layer: interpreted outputNo result yet
Result includes interpretation, uncertainty, and the next executable action.
Empty state
No calculation yet. Enter inputs and run the estimator to generate a fit decision.
Stage1b gap audit and closure status
Audit-first enhancement: each high-impact content gap is tracked with explicit remediation status.
Gap closure ledger
Blocker/high gaps are closed in-page; unresolved items remain explicitly marked for follow-up.
| Gap found | Decision impact | Stage1b action | Status |
|---|---|---|---|
| Core conclusions relied mostly on internal assumptions. | High decision risk for low-voltage driver architecture and battery selection. | Added external primary sources (TI, Energizer, Pololu, FAULHABER, EUR-Lex) with dates. | Closed in stage1b |
| 1.5V boundary existed but lacked quantified constraints. | High risk of choosing an H-bridge that cannot operate on the rail. | Added VM minimum/UVLO references and a low-voltage counterexample scenario. | Closed in stage1b |
| Risk section missed hard numeric triggers for current and droop. | Medium-to-high risk of undersized power path and repeated startup failures. | Added startup sag reference and stall-current utilization guardrail context. | Closed in stage1b |
| The `10w dc motor 6v` phrase lacked electrical-input vs shaft-output boundary interpretation. | High risk of underestimating rated/startup current budget and selecting undersized drivers. | Added `10W @ 6V` interpretation matrix with explicit assumptions, formulas, and current bands. | Closed in stage1b |
| Driver decisions mixed peak numbers with continuous-current capability. | High risk of selecting hardware that passes peak headline specs but fails sustained thermal operation. | Added TI current-rating guidance and a driver headroom matrix (VM floor + peak + thermal caveats). | Closed in stage1b |
| Duty/lifetime conclusions lacked public PN-level endurance evidence. | Medium risk of overconfident lifetime claims at high duty. | Marked as pending and required supplier bench-life package before release. | Open (evidence pending) |
Report summary: conclusions and key numbers
Core conclusions are paired with quantifiable context before deep-dive sections.
Canonical query volume
110 / month
US snapshot from 2026-03-29 keyword triage.
Alias query volume
10 + 0 / month
`1.5 6v dc motor` (10/mo) and `10w dc motor 6v` (0/mo) are merged into this canonical URL.
Commercial signal
$0.44 CPC
Indicates mixed sourcing + evaluation intent.
Low-voltage driver floor
1.65V to 2.7V
Common brushed drivers vary: DRV8212 starts at 1.65V; DRV8833 at 2.7V.
10W @ 6V (input power view)
1.67 A baseline
Electrical-input interpretation only: I = P / V.
10W @ 6V (shaft power view)
~2.49 A input
If 10W is mechanical output and eta ~= 67%, startup can approach ~6A at 2.4x.
Who this is suitable for
- Need a fast pre-RFQ shortlist for brushed/coreless options.
- Need to compare 1.5V startup feasibility against 6V nominal design.
- Need current estimate before selecting driver, wire gauge, and battery.
- Need a decision memo with boundaries and risk notes for procurement.
Who this is not suitable for
- Safety-critical products needing certified thermal/lifetime tests.
- Designs requiring exact brush chemistry and commutator material mapping.
- Applications with explosive atmosphere compliance or IP67 guarantee.
- Mass production release without bench validation and sample approval.
Methods and evidence
Transparent formulas, dated sources, and explicit known/unknown boundaries.
Method flow
Input to estimate to boundary check to action path.
| Method block | Formula / rule | Decision value |
|---|---|---|
| Mechanical power estimate | P = 2 * pi * n / 60 * T | Converts speed and torque into shaft mechanical load. |
| Rated current estimate | I = P / (V * eta) + I_idle | Adds efficiency + idle current to avoid optimistic sizing. |
| 10W input-power baseline | I_input = P_input / V | At 10W and 6V, baseline current is 1.67A before startup and thermal margins. |
| 10W shaft-power back-calculation | I_input = (P_shaft / eta) / V | If 10W is shaft output with eta ~= 67%, input current rises to ~2.49A. |
| Startup surge estimate | I_start ~= 2.4 * I_rated | Used for driver and power rail margin planning. |
| Single-cell droop reference | V_drop ~= I_start * R_internal | Uses 150-300 mOhms as a reference band from E91 nominal IR data. |
| Confidence score | Base 91 - condition penalties | Reduces confidence in high duty, high heat, low voltage cases. |
Source ledger
Time markers and certainty labels are mandatory for trust. Last refreshed: 2026-04-29.
| Source | Date | Coverage | Known / Unknown |
|---|---|---|---|
| data/keywords/6v-dc-motor_triage_fixed.csv | 2026-03-29 | Canonical volume/CPC and alias mapping context. | Known |
| data/keywords/6v-dc-motor_broad-match_us_2026-03-29.alias-merge-checklist.csv | 2026-03-29 | Alias `1.5 6v dc motor` and `10w dc motor 6v` -> `/learn/6v-dc-motor`. | Known |
| OpenSpec change: add-kw-1-5-6v-dc-motor-page | 2026-04-06 | No standalone alias route; canonical-only decision. | Known |
| OpenSpec change: add-kw-10w-dc-motor-6v-page | 2026-04-29 | Confirmed `10w dc motor 6v` as alias_merge into canonical `/learn/6v-dc-motor`. | Known |
| TI DRV8833 datasheet (Rev. E) | Accessed 2026-04-29 | VM range 2.7V-10.8V, per-bridge 1.5A RMS, and UVLO behavior. | Known |
| TI DRV8212 datasheet (Rev. B) | Accessed 2026-04-29 | 1.65V-11V supply range, 4A OCP table value, and thermal/current-capability section. | Known |
| TI application report: Understanding Motor Driver Current Ratings (SLVA505A) | Accessed 2026-04-29 | Peak vs continuous current interpretation, OCP behavior, and PCB thermal dependency. | Known |
| Toshiba TB6612FNG datasheet | Accessed 2026-04-29 | 2.5V-13.5V VM, 1.2A average output current, and 3.2A pulse limitation envelope. | Known |
| Energizer E91 AA datasheet | Accessed 2026-04-29 | Nominal 1.5V, nominal IR 150-300 mOhms, operating temperature -18C to 55C. | Known |
| Energizer L91 AA lithium datasheet | Accessed 2026-04-29 | Max discharge 2.5A continuous / 4.0A pulse, IR 120-240 mOhms. | Known |
| Pololu micro metal gearmotors guide (Rev 6.2) | Accessed 2026-04-29 | 6V LP/HPCB performance examples and recommendation to keep operation near <=25% stall current. | Known |
| FAULHABER DC motor technical guide and motor-calculation whitepaper | Accessed 2026-04-29 | U = I*R + kE*w model, P2 = M*2*pi*n/60, and first-pass selection boundary (n >= no/2, M <= MH/2). | Known |
| EUR-Lex Directive 2011/65/EU (RoHS) | Accessed 2026-04-06 | Annex II concentration limits for restricted substances in homogeneous materials. | Known |
| On-page sizing model (this tool) | 2026-04-06 | Pre-RFQ current/power/fit scoring; not a substitute for PN-level endurance validation. | Known |
| Brand-specific endurance and brush-wear test reports | Pending | PN-level life curves for high-duty and high-temperature profiles. | Pending confirmation / no reliable public dataset |
`10w dc motor 6v` meaning boundary
The same keyword can imply different current budgets. This matrix forces explicit assumptions before RFQ.
Power interpretation matrix
Added in this enhancement round to separate electrical-input vs shaft-output interpretations.
| Interpretation | Formula used | Current reference | Applicable condition | Decision action |
|---|---|---|---|---|
| 10W treated as electrical input power | I = P / V = 10 / 6 | 1.67A rated baseline | Use when vendor clearly states 10W is electrical consumption at operating point. | Still add startup and thermal margins before selecting driver and wiring. |
| 10W treated as shaft output power | I = (P_shaft / eta) / V, eta ~= 0.67 | ~2.49A rated baseline | Use when 10W refers to mechanical output and no measured efficiency curve is provided. | Current budget is materially higher; request efficiency map in RFQ. |
| Startup band from 10W input-power baseline | I_start ~= 2.4 * I_rated | ~4.0A startup reference | Applies to short startup windows for brushed systems with non-negligible inertia/load. | Peak-current compatibility alone is insufficient; verify OCP behavior and thermal rise. |
| Startup band from 10W shaft-power baseline | I_start ~= 2.4 * 2.49A | ~5.98A startup reference | Worst-case boundary when shaft power target is interpreted literally without derating. | Often requires architecture change (parallel outputs, boost stage, or larger driver class). |
Stage1b research delta
Only net-new, source-verifiable information is included here. Each row states scope and decision consequence.
New evidence-backed decision facts
Update date: 2026-04-29. Facts without stable public evidence stay in the pending block.
| Topic | New fact | Applicable condition | Decision effect | Certainty |
|---|---|---|---|---|
| Driver voltage floor | DRV8833 is 2.7V-10.8V with UVLO around 2.6V (falling). | Applies when the design uses DRV8833-class drivers for brushed control. | Single-cell 1.5V rail is a boundary/counterexample unless boosted or changed. | Known |
| 10W phrase interpretation boundary | At 6V, 10W input means 1.67A, while 10W shaft output at eta ~= 67% means ~2.49A input before startup multiplier. | Applies when users write `10w dc motor 6v` without clarifying whether power is electrical input or shaft output. | RFQ must declare power definition; otherwise current budget can be underestimated by >40% before surge margins. | Known with explicit assumption |
| Peak current is not a sustained-current license | TI current-rating guidance states peak/OCP numbers do not directly define continuous thermal capability, which depends on PCB and ambient conditions. | Applies to all compact H-bridge selections where vendor headline current is peak or OCP-based. | Treat peak current as startup envelope only; validate RMS/DC current on your board with thermal instrumentation. | Known |
| Driver envelope comparison for 10W-at-6V starts | DRV8833 lists 1.5A RMS per bridge, DRV8212 lists 4A OCP class and 1.65V floor, while TB6612FNG lists 1.2A average and 3.2A pulse limits. | Applies when startup current is in the ~4A to ~6A band from `10W` interpretations plus surge multiplier. | For 10W starts, require explicit driver-mode choice (parallel bridge / burst duration / thermal design) before procurement. | Known with device-specific scope |
| Lower-voltage driver option | DRV8212 supports 1.65V-11V operating range. | Still requires rail headroom above brownout and startup transient droop. | 1.5V designs need dropout margin verification before selecting this path. | Known with boundary |
| Battery rail droop risk | E91 nominal IR is 150-300 mOhms; startup surge can consume rail margin quickly. | Single-cell alkaline reference only; real packs vary by chemistry, age, and temperature. | Do not treat 1.5V as stable under surge without pack-level measurements. | Known with modeling assumptions |
| Chemistry tradeoff | L91 lists 2.5A continuous / 4.0A pulse and 120-240 mOhms typical IR. | Spec is single-cell and datasheet conditions; verify at your duty/temperature profile. | High-pulse startup requirements may favor chemistry upgrade over motor downsizing. | Known |
| Motor operating guardrail | Pololu Rev 6.2 shows 6V LP example (0.04A no-load, 0.36A stall, ~0.29W max power) and advises operating near <=25% stall current. | Vendor-specific guidance, not universal across all motor families. | Use as a pre-RFQ screening limit, then validate against chosen PN datasheet. | Known with vendor scope |
| Selection boundary heuristic | FAULHABER guidance uses n >= no/2 and M <= MH/2 as a first selection check. | First-pass selection heuristic; not a direct lifetime guarantee. | When outside this region, move early to gearhead/larger frame architecture review. | Known with boundary |
| Compliance boundary | RoHS Annex II lists homogeneous-material concentration limits (e.g., Pb 0.1%, Cd 0.01%). | Applies to EEE placed on covered markets and categories with relevant obligations. | Treat supplier material declarations as gating documents before production RFQ release. | Known |
Pending confirmation / no reliable public data
Evidence is insufficient for strong conclusions in these areas.
| Open question | Why evidence is insufficient | Decision impact |
|---|---|---|
| High-duty (>80%) life curves at elevated temperature for short-can 6V brushed micro motors. | No reliable cross-vendor public dataset with matched load profile and brush composition. | Cannot issue strong life claims; procurement should require PN-level endurance report. |
| Cold-start success rate at 1.5V across battery aging states. | Public datasets are fragmented and not normalized by pack ESR and startup waveform. | Startup reliability remains conditional until bench samples are tested. |
| Unified acoustic/noise comparison for coreless brushed vs mini BLDC in same envelope. | Most public figures use different test rigs and weighting methods. | Noise tradeoff should be treated as directional, not definitive, in early shortlist. |
| Cross-vendor continuous-current equivalence under identical PCB thermal design. | Current ratings are published with different thermal assumptions and protection semantics. | Driver swap decisions remain uncertain until board-level thermal tests are normalized. |
Alternative comparison
Use reproducible dimensions (voltage, torque, response, cost, fit) instead of generic claims.
Option comparison table
If a value is unavailable in your project context, keep it as N/A and request supplier evidence.
| Option | Voltage band | Torque band | Dynamic response | Cost class | Best-fit scenario | Boundary / counterexample |
|---|---|---|---|---|---|---|

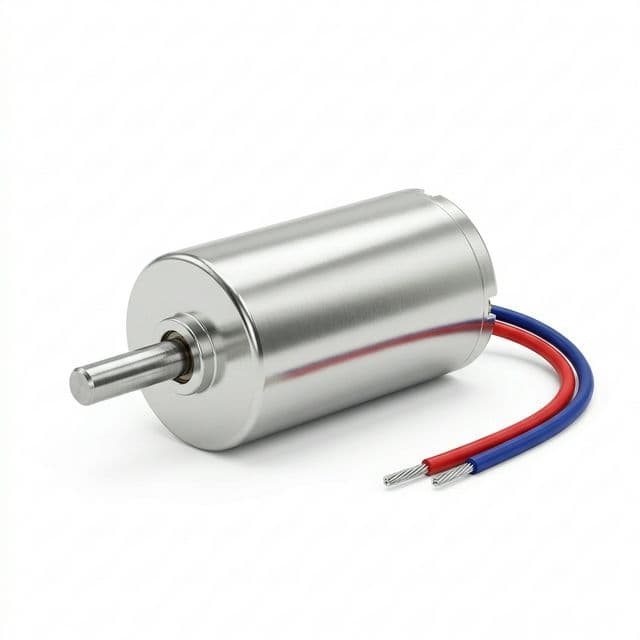

| Coreless brushed direct drive | 1.5V-6V | 5-35 mNm | Very fast | Low to medium | Good for compact, low inertia systems | Counterexample: high torque + high duty requests can exceed thermal and wear limits quickly. |

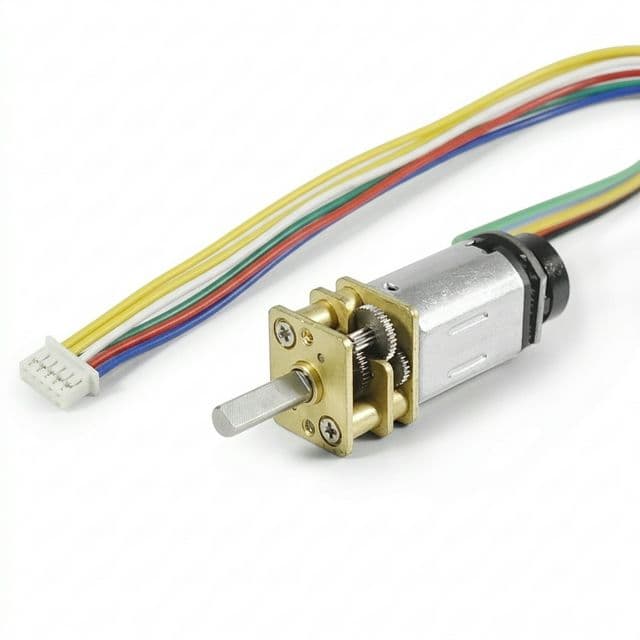

| Coreless brushed + gearhead | 3V-6V | 30-120 mNm | Medium | Medium | Good when torque dominates over speed | Gearhead wear and backlash risk increase if startup shock and reversing frequency are not controlled. |
| Mini BLDC | 5V-12V | 15-90 mNm | Fast | Medium to high | Better life/noise, needs controller complexity | At 1.5V rails this path is usually not viable without power-conversion architecture changes. |
| Mini stepper | 3V-12V | 20-130 mNm | Slow | Medium | Precision positioning over continuous speed use cases | Not suitable when the primary requirement is high-speed continuous rotation efficiency. |
Risk and mitigation
Covers misuse risk, cost risk, and scenario mismatch risk with direct mitigation actions.
Risk matrix
| Risk | Impact | Probability | Mitigation path |
|---|---|---|---|
| VM droop below motor-driver floor (or UVLO threshold) | High | High in 1.5V single-cell designs | Verify driver VM minimum and transient droop on oscilloscope before architecture freeze. |
| Undersized startup current budget | High | Medium | Reserve >=2.4x rated current on driver + power path. |
| Sustained operation near/above vendor brushed-current guidance | Medium | Medium | Use stall-current utilization as a pre-RFQ screen and demand PN-level thermal/life evidence. |
| Using 1.5V continuously for a motor specified at 6V nominal | Medium | High under load | Treat 1.5V as startup/low-load mode unless validated on bench. |
| Thermal drift at high duty cycle without endurance curves | High | Medium | Run duty derating and include enclosure thermal path review. |
| RoHS compliance assumed without homogeneous-material declarations | High | Medium | Collect supplier declaration and exemption mapping before production release. |
| Alias query interpreted as separate SKU | Medium | Medium | Keep one canonical URL and answer alias intent explicitly in FAQ. |
Driver headroom matrix (for 10W-at-6V planning)
Peak-current headlines are insufficient on their own. Supply floor, peak semantics, and thermal context must be checked together.
| Driver | VM operating range | Published current spec | Boundary for procurement decisions | Source |
|---|---|---|---|---|
| TI DRV8833 | 2.7V-10.8V | 1.5A RMS per bridge; ~2A peak; ~3A RMS / ~4A peak with paralleled bridges | 1.5V direct rail is outside VM range; 10W startup bands usually require parallel mode plus thermal validation. | TI DRV8833 datasheet (Rev. E) |
| TI DRV8212 | 1.65V-11V | 4A peak (OCP-class table value), with current capability tied to PCB thermal design | Closer to low-voltage rails, but continuous current must be verified on board-level thermal conditions. | TI DRV8212 datasheet + TI current-rating app report |
| Toshiba TB6612FNG | 2.5V-13.5V | 1.2A average per channel; 3.2A pulse (10ms max, duty <=20%) | Useful counterexample: pulse headline does not imply sustained 4A-6A startup envelopes. | TB6612FNG datasheet |
Scenario examples
Each scenario includes assumptions, modeled output, and the minimum next action.
Scenario table
| Scenario | Assumption | Estimated result | Action |
|---|---|---|---|
| Single-cell rail + DRV8833-class H-bridge | 1.5V rail with driver family requiring VM around >=2.7V and UVLO protection | Not recommended (bridge can stay disabled). | Switch to boosted rail or low-voltage driver path, then re-test startup transients. |
| Single-cell rail + low-voltage driver path | 1.5V nominal rail with driver floor around 1.65V and high-pulse startup | Conditional fit with strict droop validation. | Validate cold-start and aged-cell droop before confirming procurement shortlist. |
| Portable valve actuator | 6V rail, 9k rpm target, 28 mNm, 45% duty | Conditional fit (gearhead optional). | Request A/B samples: direct drive + 3:1 gearhead. |
| Low-voltage startup latch | 1.5V startup, 5k rpm target, 12 mNm, 20% duty | Recommended with startup surge margin. | Validate startup across low-temperature battery conditions. |
| High-duty conveyor micro-stage | 6V, 10k rpm target, 80 mNm, 85% duty | Not recommended as direct coreless drive. | Move to geared architecture and thermal instrumentation. |
Alias coverage anchors
Internal anchors keep `1.5 6v dc motor` and `10w dc motor 6v` traffic on this canonical page without split routes.
Decision FAQ
Questions are grouped by intent, not glossary-only definitions.
B2B application fit, OEM options, and inquiry handoff
Move from estimator output to executable sourcing with factory customization scope and compliance-ready RFQ preparation.
Application fit
Projects that match this page's pre-RFQ scope.
- Procurement teams screening 1.5V-6V brushed/coreless options before supplier shortlist.
- Programs consolidating `6v dc motor`, `1.5 6v dc motor`, and `10w dc motor 6v` intent on a single canonical route.
- Projects that need current and droop boundaries before RFQ submission.
OEM options
Customization knobs available from factory-side engineering.
- Winding/Kv and no-load-speed tuning to match your voltage envelope.
- Gearhead, shaft geometry, and connector customization for integration constraints.
- Lead-wire, insulation, and packaging customization aligned to your assembly flow.
Trust and compliance
Evidence gates required before production commitment.
- Collect RoHS/REACH declarations with homogeneous-material granularity before order release.
- Validate startup surge, thermal rise, and duty-cycle life on PN-level samples.
- Keep this page as pre-RFQ guidance; final claims require manufacturer qualification files.
