1.5V-3.0V DC Small Motor Sizing Tool and Decision Report (includes `1.5 3 volts dc small motor 5` intent)
Use one canonical URL to finish two tasks in sequence: get a quick feasibility estimate for low-voltage small-motor requests, then verify decision quality with dated evidence, boundaries, alternatives, and risk controls for 5-piece pilot sourcing.
Published: 2026-04-06 | Last updated: 2026-04-08 | Review cadence: quarterly
Tool layer: quick sizing input
Enter boundary-safe values first. Invalid input is blocked and recoverable.
Result layer: interpreted outputNo result yet
Result includes interpretation, uncertainty, and the next executable action.
Empty state
No calculation yet. Enter inputs and run the estimator to generate a fit decision.
Stage1b gap audit and closure status
Audit-first enhancement: each high-impact content gap is tracked with explicit remediation status.
Gap closure ledger
Blocker/high gaps are closed in-page; unresolved items remain explicitly marked for follow-up.
| Gap found | Decision impact | Stage1b action | Status |
|---|---|---|---|
| Alias intent `1.5 3 volts dc small motor 5` was not explicitly answered in core sections. | High risk of creating separate route assumptions and diluted canonical signals. | Added alias phrase to H1/FAQ/anchors and kept a single canonical route `/learn/1-5-3-volts-dc-small-motor-5`. | Closed in stage1b |
| Tool speed boundary was inconsistent with low-speed decision branches. | High risk of unreachable boundary paths and misleading confidence output. | Reframed speed input as output-speed boundary (2-600rpm) and aligned model checks. | Closed in stage1b |
| Driver evidence stopped at VM minimum and missed UVLO/OCP thresholds. | High risk of startup failures and driver overcurrent assumptions during architecture freeze. | Added DRV8833/DRV8212/DRV8411 UVLO rising/falling and OCP values from TI datasheets. | Closed in stage1b |
| A previous Pololu citation mixed SKU context with stale numeric assumptions. | High risk of incorrect low-speed torque/current claims in pilot sourcing. | Replaced with Pololu-documented gearbox load-limit, instantaneous torque, stall-warning, and 25%-stall guidance. | Closed in stage1b |
| RoHS section omitted the four phthalates added by Directive (EU) 2015/863. | Medium-to-high risk of RFQ compliance gaps for post-2019 EU shipments. | Added DEHP/BBP/DBP/DIBP limits and effective dates (2019/2021) with EUR-Lex citation. | Closed in stage1b |
| Public PN-level endurance datasets remain incomplete across vendors. | Medium risk of overconfident lifetime and noise claims in procurement. | Kept pending-data block explicit as "no reliable public dataset" and gated strong lifetime claims. | Open (evidence pending) |
Report summary: conclusions and key numbers
Core conclusions are paired with quantifiable context before deep-dive sections.
Demand confidence band
0-10 / month
US queue snapshot (data/keywords/small-dc-motor_broad-match_us_2026-03-29.primary-implementation-queue.csv, 2026-03-29).
Driver UVLO checkpoints
2.6V / 1.65V / 1.6V
DRV8833 vs DRV8212 vs DRV8411 startup thresholds from TI datasheets.
Battery temperature window
-18C..55C vs -40C..60C
E91 alkaline vs L91 lithium AA datasheets (Energizer).
RoHS restriction scope
10 substances
RoHS 2011/65/EU plus Directive (EU) 2015/863 phthalate additions.
Who this is suitable for
- Need a fast pre-RFQ shortlist for 1.5V-3.0V battery-powered small motors.
- Need to judge whether `1.5 3 volts dc small motor 5` intent should be solved by gear reduction, not direct drive.
- Need startup current and droop estimates before selecting driver, battery chemistry, and wiring.
- Need decision-ready risk boundaries before requesting samples.
Who this is not suitable for
- Safety-critical products needing certified thermal/lifetime tests.
- Programs requiring guaranteed multi-thousand-hour life without PN-level bench data.
- Applications requiring formal acoustic compliance reports from public datasets alone.
- Mass-production release without startup waveform and gearbox-load validation.
Need an engineering review before RFQ lock?
Send your constraints and get a supplier-facing boundary review plan.
Methods and evidence
Transparent formulas, dated sources, and explicit known/unknown boundaries.
Method flow
Input to estimate to boundary check to action path.
| Method block | Formula / rule | Decision value |
|---|---|---|
| Mechanical power estimate | P = 2 * pi * n / 60 * T | Converts requested output-speed and torque into output mechanical load. |
| Motor equation boundary | U = I * R + kE * w | From FAULHABER: lower supply voltage reduces available speed/torque headroom. |
| Output speed approximation | gear_ratio_hint: <=5rpm=>1000:1, <=20=>380:1, <=80=>100:1 | Maps low-speed requests to reduction-class risk instead of direct-drive assumptions. |
| Driver startup boundary | VM_start > UVLO_rising; VM_run > UVLO_falling | Separates startup and hold-up states; nominal 1.5V alone is not sufficient evidence. |
| Current and droop estimate | I_start ~= 2.8 * I_rated; V_drop ~= I_start * R_internal | Uses E91/L91 internal-resistance bands for startup-risk screening. |
| Confidence score | Base 90 - boundary penalties | Penalizes low voltage margin, ultra-low speed requests, and high duty/torque combinations. |
Source ledger
Time markers and certainty labels are mandatory for trust. Last refreshed: 2026-04-08.
| Source | Date | Coverage | Known / Unknown |
|---|---|---|---|
| data/keywords/small-dc-motor_broad-match_us_2026-03-29.primary-implementation-queue.csv | 2026-03-29 | Canonical keyword `1.5V-3.0V dc small motor` queue snapshot (volume=10, CPC=0.25). | Known |
| data/keywords/small-dc-motor_broad-match_us_2026-03-29.csv | 2026-03-29 | Alternate broad-match snapshot marks canonical/alias cluster terms at volume=0. | Known (conflicting snapshot) |
| data/keywords/small-dc-motor_broad-match_us_2026-03-29.triage.csv | 2026-03-29 | Alias mapping confirms `1.5 3 volts dc small motor 5` -> canonical `/learn/1-5-3-volts-dc-small-motor-5`. | Known |
| OpenSpec change: add-kw-1-5-3-volts-dc-small-motor-5-page | 2026-04-06 | Alias decision = merge; no standalone route for this query. | Known |
| TI DRV8833 datasheet (Rev. E, July 2015) | Accessed 2026-04-08 | VM range 2.7V-10.8V; UVLO rising threshold 2.6V (typ, 90mV hysteresis); OCP threshold 2.0A-3.3A. | Known |
| TI DRV8212 datasheet (Rev. B, February 2021) | Accessed 2026-04-08 | VM range 1.65V-11V; UVLO rising 1.65V and falling 1.30V; OCP threshold 4A. | Known |
| TI DRV8411 datasheet (Rev. C, revised June 2024) | Accessed 2026-04-08 | VM range 1.65V-11V; UVLO rising 1.6V and falling 1.3V; OCP threshold 4A. | Known |
| Energizer E91 AA datasheet | Accessed 2026-04-08 | Nominal 1.5V, nominal IR 150-300 mOhms, operating temperature -18C to 55C. | Known |
| Energizer L91 AA lithium datasheet | Accessed 2026-04-08 | Nominal 1.5V, IR 120-240 mOhms, operating temperature -40C to 60C, and max discharge 2.5A continuous / 4.0A pulse. | Known |
| Pololu product 3044 page | Accessed 2026-04-08 | For 380:1 and 1000:1 gearboxes, recommended continuously applied load is around 25kg*mm and instantaneous torque around 2.5kg*cm. | Known with vendor scope |
| Pololu product 3044 FAQs | Accessed 2026-04-08 | Stalls can cause thermal damage in seconds; keeping typical operation near 25% of stall current is advised. | Known with vendor scope |
| FAULHABER DC motor technical guide and motor-calculation whitepaper | Accessed 2026-04-08 | Provides U=I*R+kE*w relationship and first-pass selection boundary (n >= n0/2 and M <= MH/2). | Known |
| maxon DC motor training note | Accessed 2026-04-08 | Service life distribution can span <100h (extreme) to >20,000h (favorable), with many brushed applications around 1,000-3,000h. | Known with boundary |
| EUR-Lex Directive 2011/65/EU (RoHS) | Accessed 2026-04-08 | Annex II concentration limits for restricted substances in homogeneous materials. | Known |
| EUR-Lex Directive (EU) 2015/863 | Accessed 2026-04-08 | Adds DEHP, BBP, DBP, DIBP (0.1% each) to Annex II and applies from 22 July 2019 for most EEE categories (22 July 2021 for medical and monitoring categories). | Known |
| On-page sizing model (this tool) | 2026-04-08 | Pre-RFQ current/power/fit scoring; not a substitute for PN-level endurance validation. | Known |
| Brand-specific endurance and brush-wear test reports | Pending | PN-level life curves for high-duty and high-temperature profiles. | Pending confirmation / no reliable public dataset |
Low-voltage driver boundary map
Datasheet values shown for startup/hold behavior, not just marketing VM ranges.
| Driver | VM range | UVLO | OCP threshold | Decision implication |
|---|---|---|---|---|
| DRV8833 | 2.7V-10.8V | 2.6V rising (typ), ~90mV hysteresis | 2.0A-3.3A | Not suitable for direct 1.5V single-cell startup without rail boosting. |
| DRV8212 | 1.65V-11V | 1.65V rising / 1.30V falling | 4A | Viable near 1.5V only when startup droop stays above UVLO rising threshold. |
| DRV8411 | 1.65V-11V | 1.6V rising / 1.3V falling | 4A | Alternative low-voltage path, but still requires startup waveform validation. |
Battery chemistry boundary map
`N/A` is preserved when datasheets do not publish normalized limits.
| Chemistry | Nominal voltage | Temperature | IR reference | Discharge limit | Decision implication |
|---|---|---|---|---|---|
| E91 alkaline AA | 1.5V | -18C to 55C | 150-300 mOhms | N/A (max continuous current not explicitly listed in one-page datasheet) | Higher droop risk under surge/cold-start; verify battery-plus-wiring ESR on bench. |
| L91 lithium AA | 1.5V | -40C to 60C | 120-240 mOhms | 2.5A continuous / 4.0A pulse | Better low-temperature and surge headroom; still confirm real pack droop. |
Stage1b research delta
Only net-new, source-verifiable information is included here. Each row states scope and decision consequence.
New evidence-backed decision facts
Update date: 2026-04-08. Facts without stable public evidence stay in the pending block.
| Topic | New fact | Applicable condition | Decision effect | Source | Certainty |
|---|---|---|---|---|---|
| Driver voltage floor | DRV8833 uses VM 2.7V-10.8V with UVLO rising threshold 2.6V (typ). | Applies when using standard integrated brushed H-bridges without boost conversion. | Single-cell 1.5V design is a direct counterexample for this driver class. | TI DRV8833 datasheet | Known |
| Startup vs hold-up threshold split | DRV8212 UVLO rising is 1.65V while falling is 1.30V (4A OCP class). | Startup must cross the rising threshold; staying on can tolerate a lower falling threshold. | Do not assume 1.5V nominal startup margin is enough without transient capture. | TI DRV8212 datasheet | Known with boundary |
| Alternative low-voltage bridge path | DRV8411 keeps 1.65V-11V VM range with 1.6V/1.3V UVLO and 4A OCP. | Still constrained by battery droop and layout-induced transients in real startup bursts. | Use as a low-voltage option benchmark, not as automatic proof of 1.5V robustness. | TI DRV8411 datasheet | Known with boundary |
| Battery rail droop risk | E91 nominal IR is 150-300 mOhms; L91 is 120-240 mOhms with wider low-temp range and 2.5A/4A discharge guidance. | Datasheet values are chemistry-specific; aging, temperature, and pack wiring still shift rail droop. | Cell chemistry must be part of architecture choice before locking driver topology. | Energizer E91/L91 datasheets | Known with modeling assumptions |
| low-speed hardware feasibility | Pololu flags strict load limits for 380:1 and 1000:1 classes plus higher wear risk at overload. | Vendor-family specific guidance; apply as a boundary indicator and confirm with chosen supplier. | low-speed usually implies very high gear ratio + torque verification, not direct-drive coreless. | Pololu product 3044 | Known with vendor scope |
| Gearbox load limit boundary | Pololu states ~25kg*mm continuously applied load and ~2.5kg*cm recommended upper instantaneous torque for 380:1/1000:1 classes. | Specific to the referenced gearbox family; other vendors can differ. | Low-rpm/high-torque requests must include gearbox load checks, not motor-only checks. | Pololu product 3044 | Known with vendor scope |
| Current utilization guardrail | Pololu FAQ recommends typical brushed operation near 25% of stall current and warns stalls can thermally damage in seconds. | Vendor recommendation; use as a screening guardrail before PN-level test data. | When estimates exceed this band, downgrade confidence and require bench test before RFQ. | Pololu product 3044 FAQs | Known with boundary |
| First-pass selection and life boundary | FAULHABER uses n >= n0/2 and M <= MH/2 first-pass checks; maxon public training data shows service-life spread from <100h to >20,000h depending on conditions. | Heuristics and broad ranges are not guarantees for a specific part number or commutation setup. | Treat low-speed-life claims as conditional unless vendor provides matched endurance curves. | FAULHABER + maxon references | Known with boundary |
| Compliance boundary | RoHS Annex II covers 10 substances after Directive (EU) 2015/863, including DEHP/BBP/DBP/DIBP at 0.1% each. | Effective from 22 July 2019 for most EEE categories and 22 July 2021 for medical/monitoring categories. | Supplier material declarations must be part of RFQ gating, not post-order cleanup. | EUR-Lex 2011/65 + 2015/863 | Known |
| Contradictory keyword snapshots | Local datasets show both volume=10 (queue snapshot) and volume=0 (broad-match snapshot) for canonical/alias intent. | Different exports and pipelines on similar dates can diverge on sparse long-tail terms. | Treat demand as low-confidence and prioritize conversion-readiness over volume assumptions. | Local keyword exports | Known |
Pending confirmation / no reliable public data
Evidence is insufficient for strong conclusions in these areas.
| Open question | Why evidence is insufficient | Decision impact |
|---|---|---|
| Vendor-normalized endurance curves for 1.5V, low-speed, and 20% to 80% duty profiles. | No reliable cross-vendor public dataset with matched load profile and brush composition. | Cannot issue strong life claims; procurement should require PN-level endurance report. |
| Cold-start success rate at 1.5V with aged alkaline vs lithium cells. | Public datasets are fragmented and not normalized by pack ESR and startup waveform. | Startup reliability remains conditional until bench samples are tested. |
| Cross-vendor backlash and positioning-error data for ultra-high-ratio micro gearboxes. | Most public specs omit backlash under matched load and direction-reversal frequency. | low-speed precision claims remain directional unless supplier test fixtures are aligned. |
Alternative comparison
Use reproducible dimensions (voltage, torque, response, cost, fit) instead of generic claims.
Option comparison table
If a value is unavailable in your project context, keep it as N/A and request supplier evidence.
| Option | Voltage band | Torque band | Dynamic response | Cost class | Best-fit scenario | Boundary / counterexample |
|---|---|---|---|---|---|---|

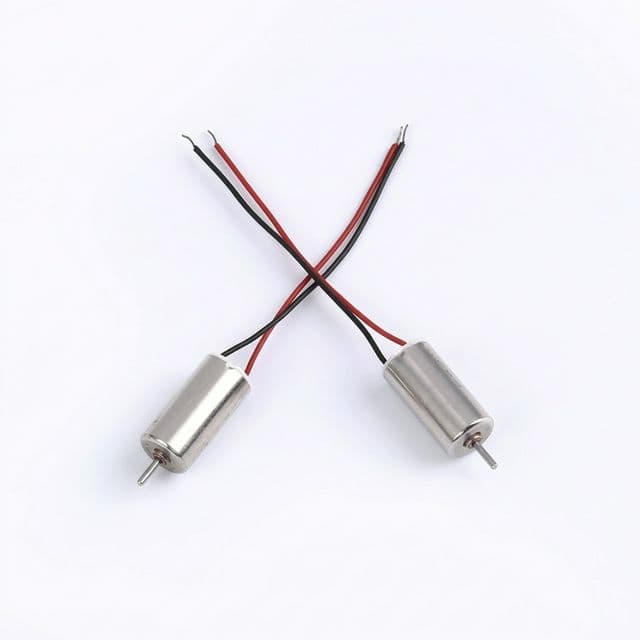

| Brushed micro motor (direct drive) | 1.5V-3.0V | 0.5-8 mNm | Very fast | Low | Good for compact high-speed spins where low torque is acceptable | Counterexample: cannot stably target low-speed output without additional reduction stage. |

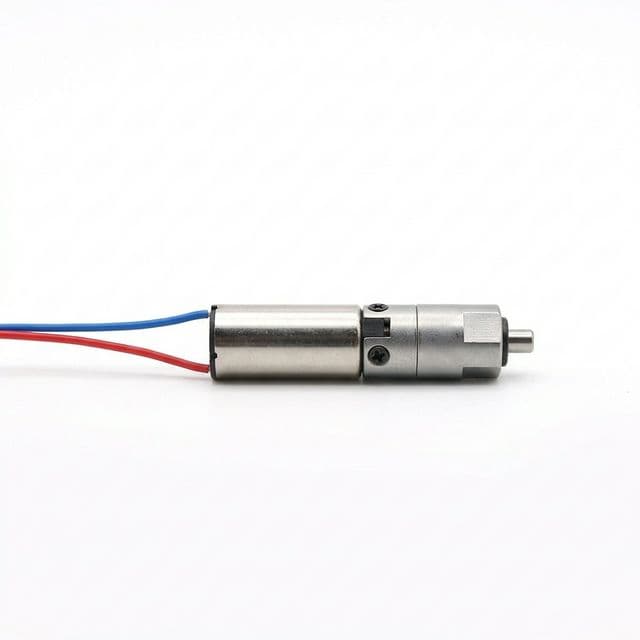

| Brushed micro motor + high-ratio gearhead (380:1 to 1000:1 class) | 1.5V-6V | 8-120 mNm | Medium | Medium | Primary path for low-speed-class requests in compact packaging | Gearbox load limits and backlash become dominant risks at low speed/high torque. |
| Boosted rail + standard H-bridge | 1.5V in, >=3V motor rail | 5-80 mNm | Medium | Medium | Useful when you must stay on commodity 2.7V+ driver ecosystem | Adds conversion loss, transient complexity, and BOM/cost overhead. |
| Low-voltage integrated H-bridge path (1.65V class) | 1.65V-11V | 2-40 mNm | Slow | Low to medium | Works near single-cell designs with strict startup-droop control | 1.5V + droop can still fall below VM floor in cold/aged-cell conditions. |
Risk and mitigation
Covers misuse risk, cost risk, and scenario mismatch risk with direct mitigation actions.
Risk matrix
| Risk | Impact | Probability | Mitigation path |
|---|---|---|---|
| Alias intent treated as separate SKU/page instead of canonical merge | High | Medium | Keep one canonical route and expose `1.5 3 volts dc small motor 5` anchors in-page. |
| Assuming direct-drive motor can hold low-speed under load | High | High | Force gearbox-path comparison and require output-speed-under-load evidence. |
| VM droop below motor-driver floor (or UVLO threshold) | High | High in 1.5V single-cell designs | Verify UVLO rising/falling thresholds and startup droop on oscilloscope before architecture freeze. |
| Undersized startup current budget | High | Medium | Reserve >=2.8x rated current on driver + power path for low-speed starts. |
| Exceeding high-ratio gearbox load-limit guidance | Medium | Medium | Check torque transients against supplier load-limit notes before sample signoff. |
| Sustained operation near/above vendor brushed-current guidance | Medium | Medium | Use stall-current utilization as a pre-RFQ screen and demand PN-level thermal/life evidence. |
| Thermal drift at high duty cycle without matched endurance curves | High | Medium | Run duty derating and include enclosure thermal path review. |
| RoHS compliance assumed without homogeneous-material declarations | High | Medium | Collect supplier declaration and exemption mapping before production release. |
| Using stale SKU-level assumptions for high-ratio gearboxes | High | Medium | Treat vendor ratio/load notes as family-specific and request current PN-level tables before pilot PO. |
Scenario examples
Each scenario includes assumptions, modeled output, and the minimum next action.
Scenario table
| Scenario | Assumption | Estimated result | Action |
|---|---|---|---|
| Single-cell rail + DRV8833-class H-bridge | 1.5V rail with driver family requiring VM around >=2.7V and UVLO protection | Not recommended (bridge can stay disabled). | Switch to boosted rail or low-voltage driver path, then re-test startup transients. |
| Single-cell rail + low-voltage driver path | 1.5V nominal rail with driver UVLO around 1.65V rising and 1.30V falling under startup pulses | Conditional fit with strict droop validation. | Validate cold-start and aged-cell droop before confirming procurement shortlist. |
| 1.5V lithium cell + 1000:1 gearmotor path | Target low-speed, 12mNm, duty 30%, startup current controlled under driver/power limits | Conditional fit with gearbox and startup waveform verification. | Request gearbox backlash + startup waveforms from supplier test bench. |
| Direct-drive coreless request at low-speed | 1.5V, no gearbox, torque demand >=10mNm | Not recommended (speed-torque target mismatch). | Switch to high-ratio gearmotor or rethink mechanical transmission. |
| Boosted rail architecture (DRV8833-class) | 1.5V battery + boost to >=3.0V VM with DRV8833 UVLO/OCP margins | Conditional fit with efficiency and transient penalties. | Validate converter startup overhead and thermal budget before RFQ. |
Alias coverage anchors
Internal anchors keep `1.5 3 volts dc small motor 5` traffic on this canonical page without split routes.
Decision FAQ
Questions are grouped by intent, not glossary-only definitions.
B2B application fit, OEM options, and inquiry handoff
Move from estimator output to executable sourcing with factory-side customization scope and compliance-ready RFQ inputs.
Application fit
Projects that match this page's pre-RFQ scope.
- Battery-powered projects in 1.5V-3.0V rails that need a fast pre-RFQ feasibility screen.
- Teams consolidating `1.5V-3.0V dc small motor` and `1.5 3 volts dc small motor 5` intent on one canonical route.
- Programs where startup current and voltage sag must be quantified before supplier shortlist.
OEM options
Customization knobs available from factory-side engineering.
- Winding and commutation tuning for low-voltage startup torque margins.
- Gear ratio and backlash tuning for low-speed output targets under real load.
- Shaft, lead-wire, connector, and mounting customization for your assembly envelope.
Trust and compliance
Evidence gates required before production commitment.
- Request dated RoHS/REACH declarations before RFQ freeze, including 2015/863 phthalates scope.
- Validate UVLO/OCP margin and startup waveform on your final battery and load.
- Treat this page as pre-RFQ screening only; release still requires PN-level bench evidence.
